Vapcell 14500 F15 1500mah 3A

WeChat
copy Link
Facebook
X
LinkedIn
$16.99
-
$76.95
$16.99
$1 OFF on $35
$2 OFF on $79
$3 OFF on $125
$5 OFF on $189
BrandVapcell
Series14500
ModelF15
CDR3A
ColorPurple
ChemistryINR
Typeflat top
pieces2
Quantity
2PCS
4PCS
6PCS
8PCS
10PCS
2PCS button top
2pcs PCB+button top
Quantity
In stock
Add to Cart
BUY
Buy
QR code
Details Review(0)

100% Never Fake

Notice:
1.Notice for the korea buyer , please leave message for the customs clearance number after make order, so that the shipping company just can send out the package

2.we will send via CDEK ,ePacket or China Post Registered Air Mail,with tracking information, you can check on the website :www.17track.net

Notice
1.Add button top batteries positive polebulges,length will be add 2MM.It is mainly used for flashlights

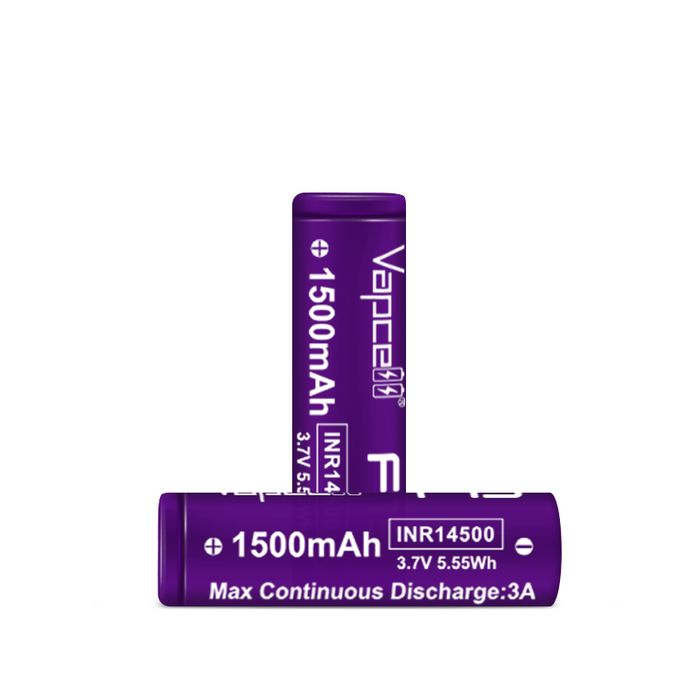

Vapcell F15 14500 1500mah 3A


Specification:


u Model: F15

u Size: 14.0±0.2*49.0±0.3mm

u Typical Capacity: 1500mAh (0.2C discharge)

u Min capacity: 1150mAh (0.2C discharge)

u Nominal voltage: 3.60V

u Max Continuous Discharge Current: 3A

u End-of-charge voltage: 4.20V

u End-of-discharge Voltage: 2.5V

u Weight: 22g ( Appr)

u Internal resistance: 60mΩ ( Appr)AC 1kHz

u Standard Charge: 500mA,CCCV 50mA cut-off

u Quick Charge Current: 1000mA



Tips


Button top can be added, and the size is 2-3mm longer than a standard 14500 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.
